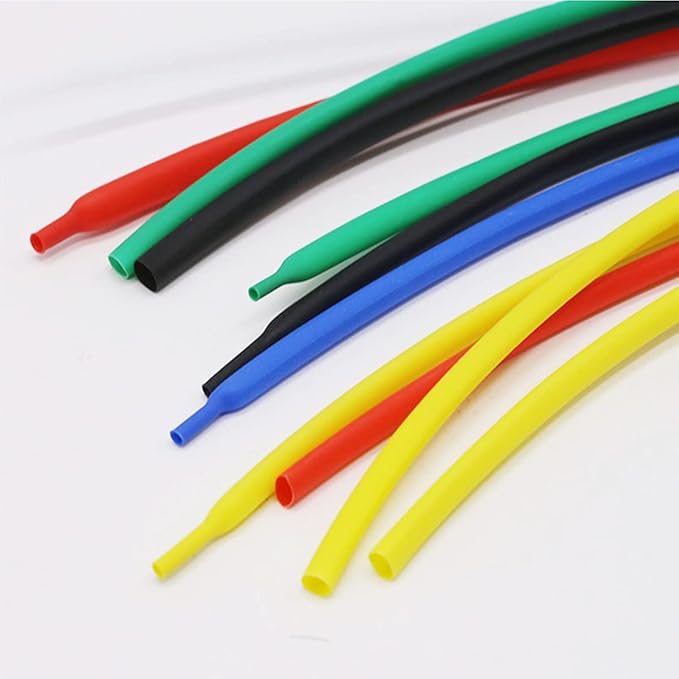

PVC Heat Shrinkable Cable Sleeves
Our PVC Heat Shrinkable Lay Flat Tubing offers superior electrical insulation for cables in low tension systems. This tubing represents the latest in insulation technology, providing a modern alternative to traditional methods like taping and painting.
- Versatile Sizes: Available in widths ranging from 17 mm to 300 mm and thicknesses from 80 microns to 400 microns, our tubing accommodates a wide range of busbar sizes requirements, both locally and for export.
- Color Variety: In addition to standard colors including Red, Yellow, Blue, Black, and Green, our innovative in-house team has developed new colors like Brown, Grey, and White adding a new dimension to bus bar insulation.
Technical Properties :
- Working Temperature: Up to 90°C
- Dielectric Strength: 20 KV/mm
- Insulation Resistance: 20 × 10¹⁰ ohms at 500 VDC
- Tensile Strength: Minimum 400 kg/cm
- Ultimate Elongation: Minimum 11%
- Chemical Resistance: Good
- Fire Resistance: Self-extinguishing with no dripping of material, compliant with UL 94-V
- Shrinking Temperature: 150°C–170°C for 4–5 minutes
- Mechanical Strength: Excellent
- Heat Dissipation: Excellent
Color Options :
- Red
- Yellow
- Blue
- Black
- Green
- Grey
- Brown
- White
Pla-tec PVC Heat Shrinkable Cable Sleeves — FAQs
What sizes are Pla-tec PVC heat shrink sleeves available in?
Pla-tec PVC Heat Shrinkable Lay Flat Tubing is available in widths from 17mm to 300mm and thicknesses from 80 microns to 400 microns, covering a wide range of busbar sizes.
What is the maximum working temperature of Pla-tec sleeves?
Pla-tec PVC heat shrink sleeves are rated for a working temperature of up to 90°C, with a dielectric strength of 20 KV/mm for reliable insulation in low tension systems.
What colors are available in Pla-tec heat shrink tubing?
Standard colors are Red, Yellow, Blue, Black and Green, with additional colors — Brown, Grey and White — developed in-house for wider bus bar insulation options.
Are Pla-tec sleeves fire resistant?
Yes, they are self-extinguishing with no dripping of material, compliant with UL 94-V, and shrink at 150°C–170°C over 4–5 minutes.
How much tensile strength do Pla-tec heat shrink sleeves have?
Pla-tec PVC heat shrink sleeves have a minimum tensile strength of 400 kg/cm and a minimum ultimate elongation of 11%, giving good mechanical durability once installed.
Are Pla-tec sleeves a modern alternative to taping and painting busbars?
Yes — the product line is positioned as a modern insulation technology replacing traditional taping and painting methods for busbar and cable insulation in low tension systems.
