Authorized Dealer and Distributor for Elcom Solar Connectors
Quality & Safety approved products
With the aim to contribute to a greener economy and make sustainable energy available, Elcom turned into a professional manufacturer of Solar Components in the year 2013, thus becoming India’s first manufacturer of solar components.
Download Elcom Solar Connectors Catalogue

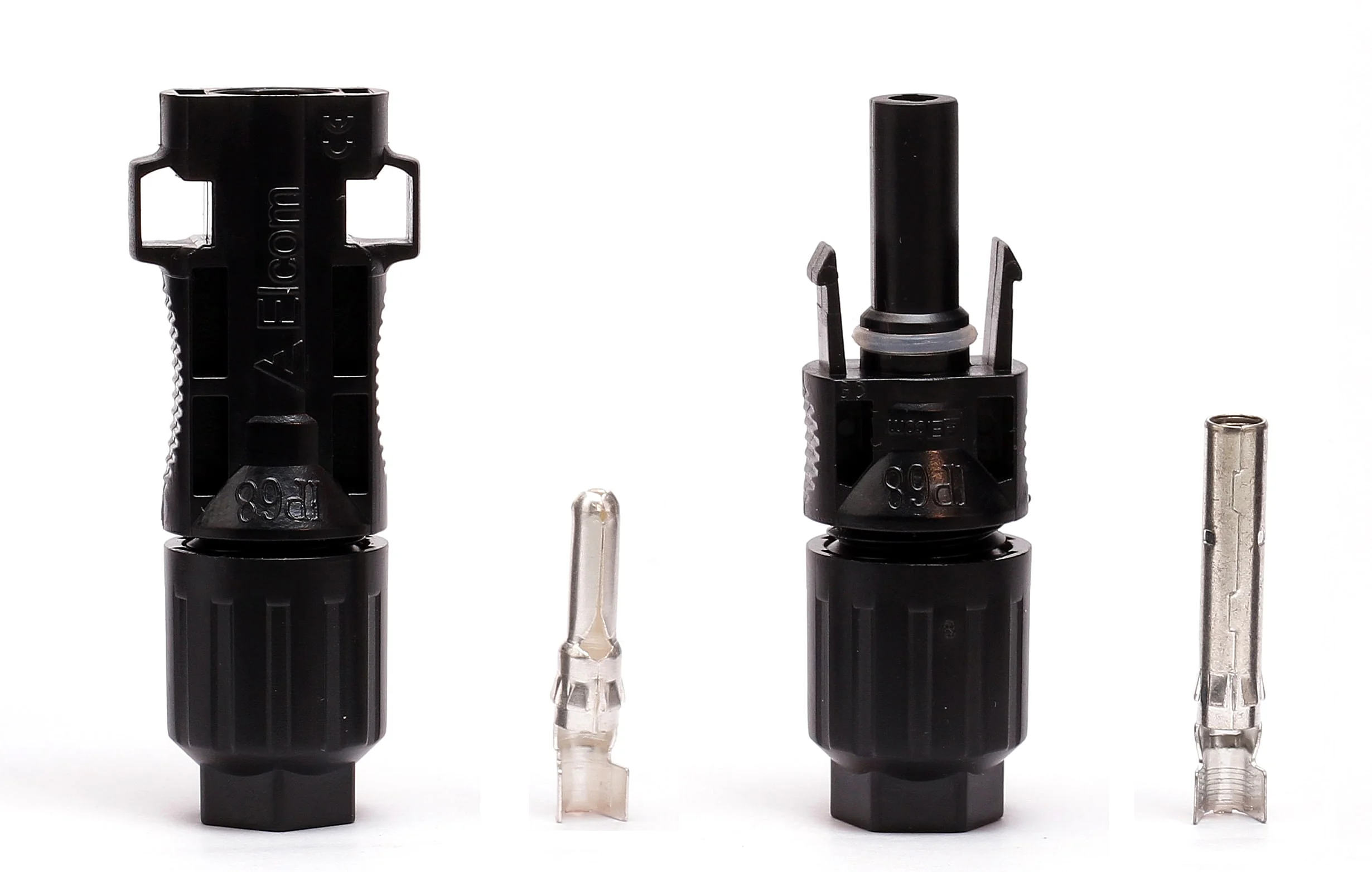

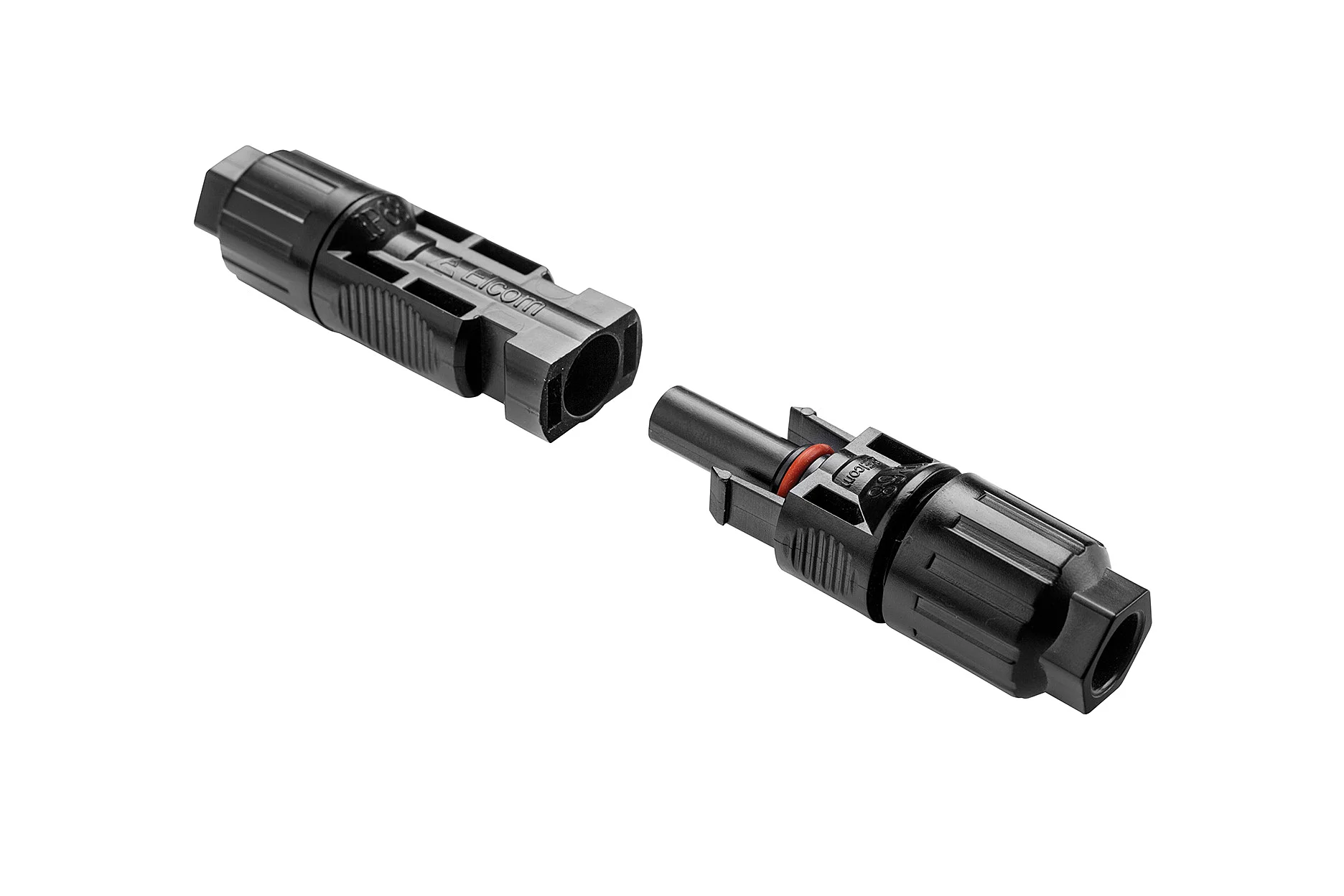

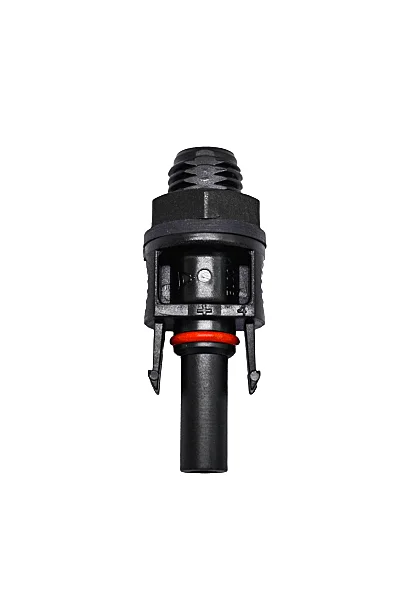

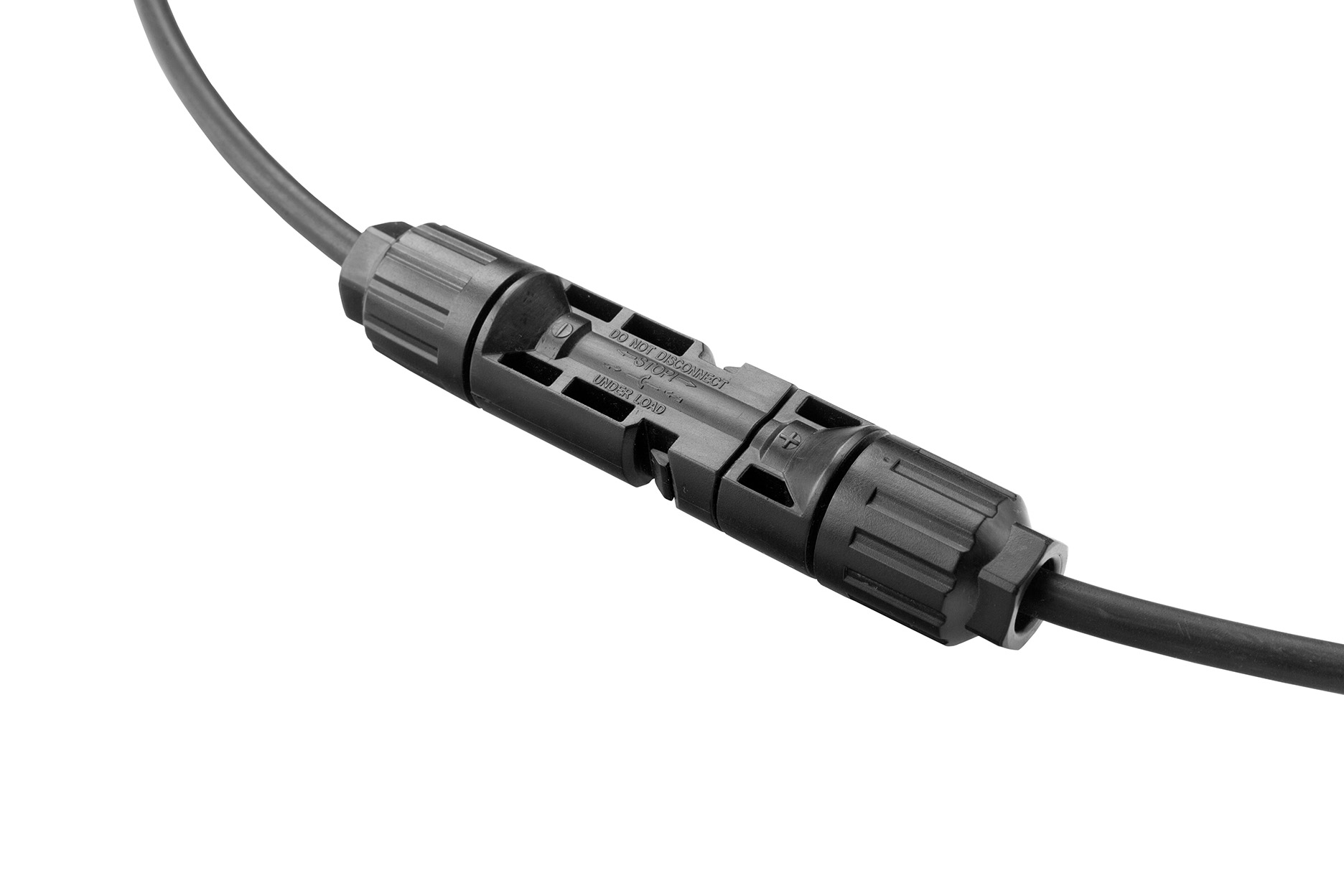

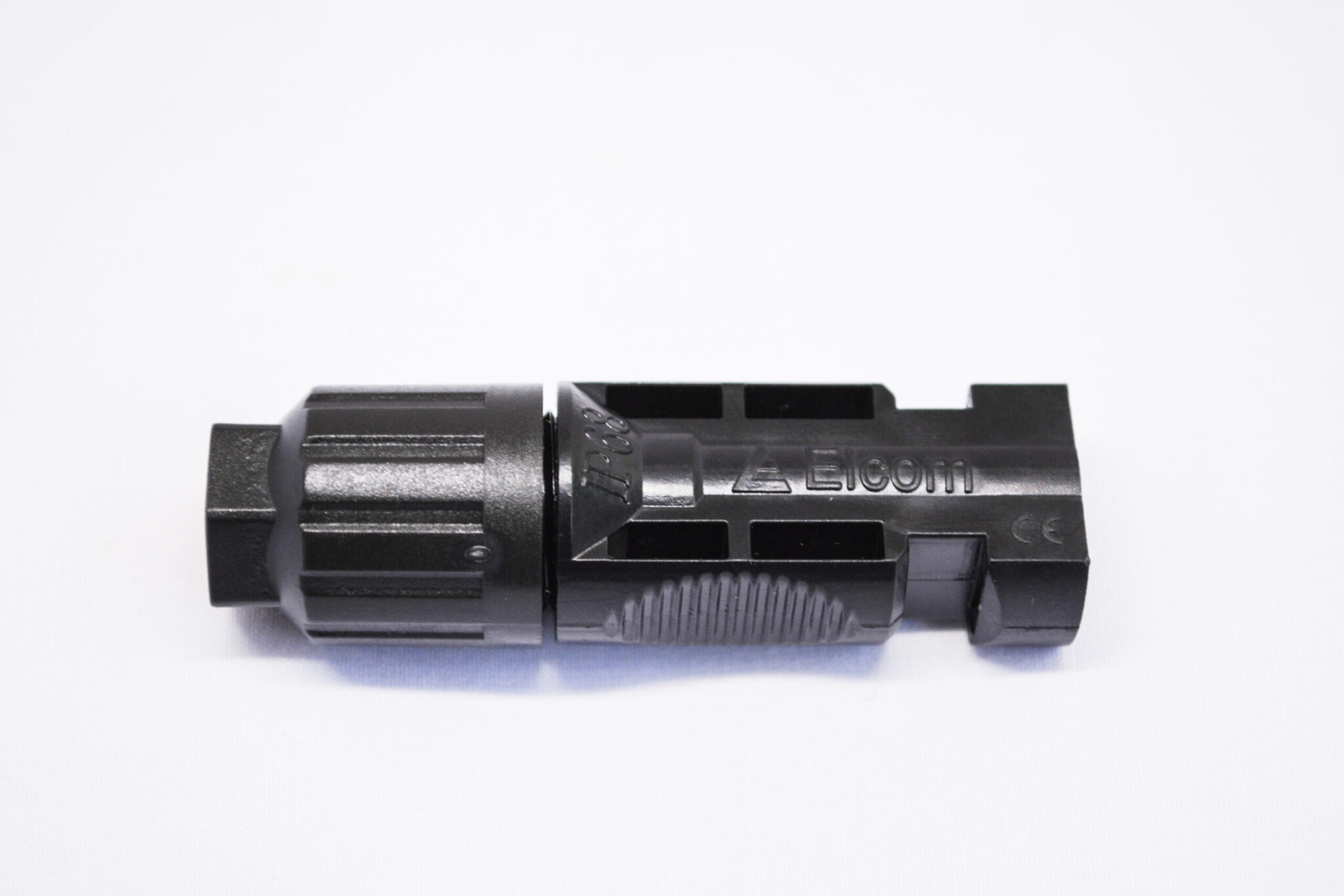

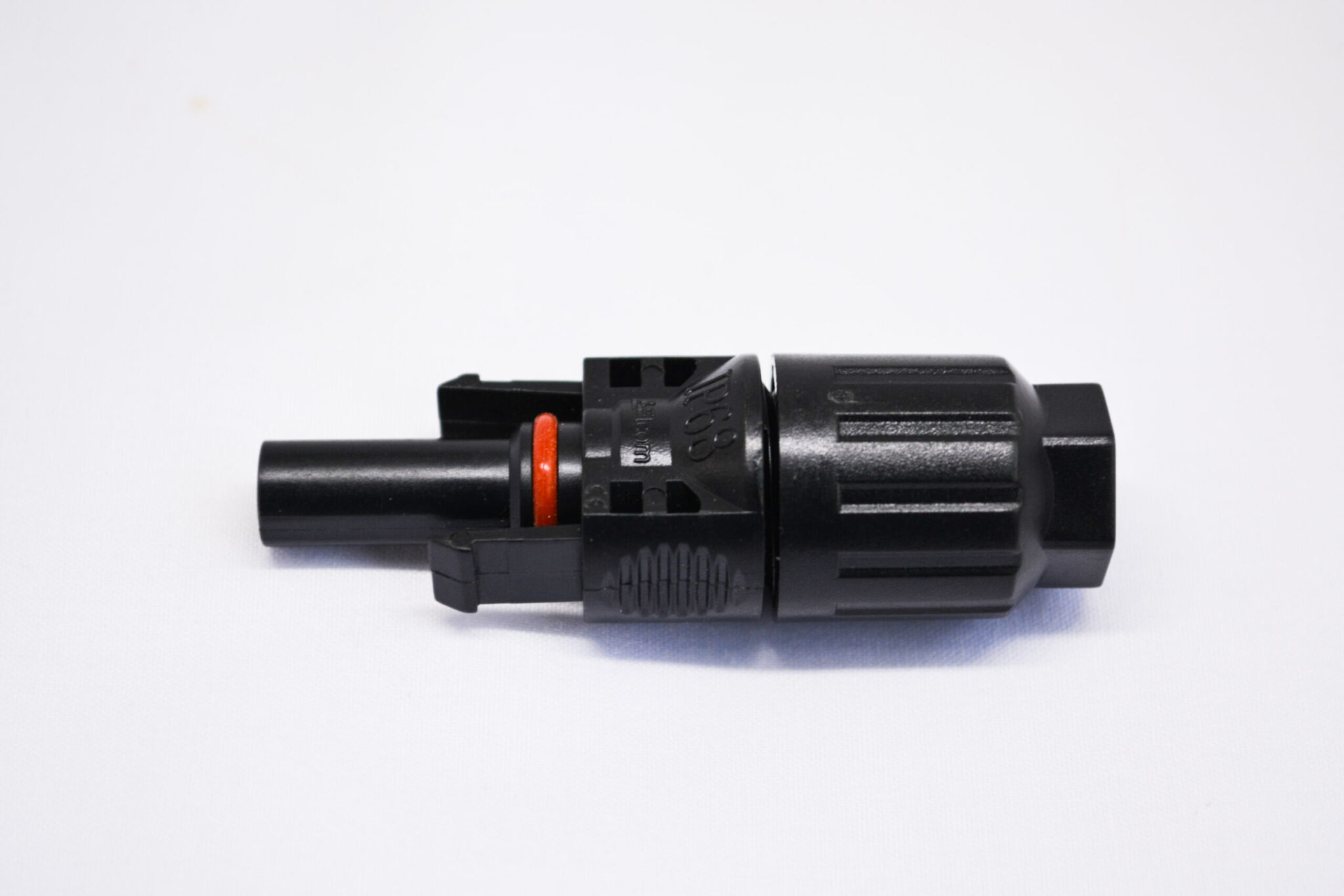

PV Cable Connectors Features
- Rated Current: 30 A
- Rated Voltage: 1500 Vdc
- Degree of Protection: IP 68
- Contact Material: Copper with silver plating
- Temperature Range: -40°C to +85°C
- Upper Limiting Temperature: 100°C
- Suitable Cable Sizes: 2.5 sq.mm, 4 sq.mm, 6 sq.mm
- Insertion Force: ≤ 50 N
- Withdrawal Force: ≥ 190 N
- Sealing Material: Silicon material
Benefits
- Reduces Levelised Cost of Electricity (LCOE) for Solar power plants.
- Longer product life span.
- Lower maintenance costs.
- Higher energy efficiency and savings.
- Minimal heat generation, ensuring safety against accidental fires.
Frequently Asked Questions
Is eNarayan an authorized dealer for Elcom solar connectors?
Yes, eNarayan is an authorized dealer and distributor for Elcom, India's first dedicated manufacturer of solar components, including PV cable connectors and MC4 connectors.
What are the key specifications of Elcom's PV cable connectors?
Rated current of 30 A, rated voltage of 1500 Vdc, IP68 ingress protection, copper contacts with silver plating, an operating temperature range of –40°C to +85°C, and compatible with 2.5, 4 and 6 sq.mm cable sizes.
Why choose Elcom connectors over generic alternatives?
Elcom connectors are designed to lower the Levelised Cost of Electricity (LCOE) through minimal heat generation and high energy efficiency, while their sealing and plating (copper with silver) support a longer product life span and lower maintenance.
Are Elcom connectors safe for long-term outdoor solar installations?
Yes — with IP68 protection, silicone sealing material and a –40°C to +85°C operating range, they're built for continuous rooftop and ground-mount solar exposure, and minimal heat generation reduces fire risk at the connection point.
Does eNarayan stock the MC4 connector specifically?
Yes, the MC4 Connector is listed as part of Elcom's PV Cable Connectors range carried by eNarayan; contact sales@enarayan.com for current stock and pricing.
