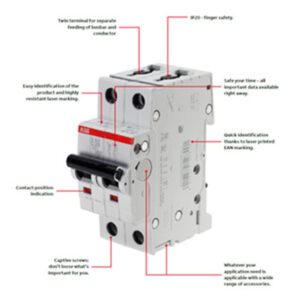

Miniature Circuit Breakers (MCB)

Miniature Circuit Breakers (MCBs) ensure electrical safety in homes, offices, and industrial applications by safeguarding electrical installations against overloads and short circuits. Upon detecting a fault, MCBs automatically cut off the electrical circuit, preventing wire damage and reducing the risk of fire. They incorporate two tripping mechanisms: a delayed thermal mechanism for overload protection and a magnetic mechanism for short circuit protection.

For over a century, we have pioneered MCB innovation and expanded our product range to meet diverse application needs worldwide. Our MCBs adhere to global standards such as IEC, UL, and CSA, ensuring universal compliance and maximum safety for buildings, assets, and infrastructure.

  • Compliance : Compliant with global standards including IEC, UL, and CSA.
  • Tripping Characteristics : Available in characteristics B, C, D, K, and Z for tailored protection.
  • Configurations : Offered in 1P, 1P+N, 2P, 3P, 3P+N, and 4P configurations to suit different electrical setups.
  • Breaking Capacities : Up to 25 kA to handle varying levels of electrical faults.
  • Rated Currents : Available with rated currents up to 100 A, catering to diverse electrical load requirements.

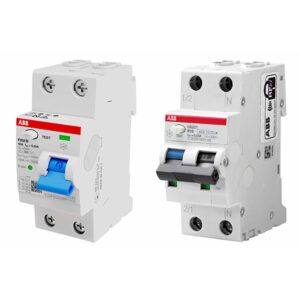

Residual Current Circuit Breaker (RCCB)

Residual Current Circuit Breakers (RCCBs) are essential safety devices designed to detect and trip in response to electrical leakage currents, thereby preventing electric shock from indirect contacts. They must be installed in series with an MCB or fuse to protect against thermal and dynamic stresses caused by overcurrents. RCCBs also serve as the primary disconnecting switches upstream of any connected MCBs, such as those found in domestic consumer units.

  • Safety Function : Detects and trips upon detecting electrical leakage currents, ensuring protection against electric shock.
  • Series Installation : Requires installation in series with an MCB or fuse to safeguard against overcurrents and thermal stresses.
  • Main Disconnect : Acts as the main disconnecting switch upstream of derived MCBs within installations like domestic consumer units.

RCCBs are integral to maintaining electrical safety in residential, commercial, and industrial settings, offering crucial protection against hazardous electrical faults.

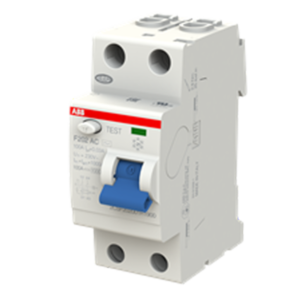

F 200

F200 RCCBs: Efficient Protection for People and Equipment

The F200 series is engineered to ensure robust protection against ground faults, ensuring safety and reliability across diverse operational conditions. Available in various types tailored to detect different current waveforms, F200 RCCBs are suitable for global installation, complying with major standards for universal applicability.

Key Features:

  • Wide Temperature Range : Operates effectively in ambient temperatures ranging from -25°C to +55°C, accommodating various environmental conditions.
  • Dual Terminals : Features two terminals: the primary terminal accommodates cables up to 25mm², while the secondary terminal supports cables up to 10mm² or busbars. This dual-terminal configuration offers flexibility, enabling independent cable connections within the same device. The secondary terminal can be utilized for auxiliary circuits or for devices requiring smaller cable sections, enhancing installation versatility.
  • Compatibility and Accessories : Fully compatible with a comprehensive range of accessories, facilitating tailored installation solutions. Can be paired with auto-reclosing units to ensure continuous service throughout the installation.

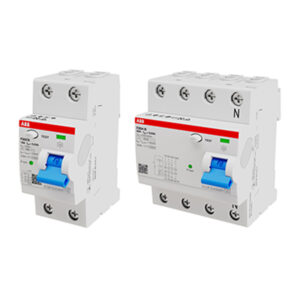

F 200 B Type

F200 B-Type RCCBs: Comprehensive Protection for Industrial Applications

The F200 Type B RCCBs are versatile current-sensitive residual current circuit breakers designed specifically for industrial environments. They are particularly suited for applications where smooth DC residual currents or currents with low residual ripple are common, such as installations with frequency converters, medical equipment, and UPS systems.

  • Universal Protection : Unlike regular Type A/AC RCCBs, Type B RCCBs can detect smooth DC residual currents effectively. They offer protection against AC residual currents and pulsating DC residual currents, ensuring comprehensive safety in diverse industrial settings.
  • Application Suitability : Ideal for non-linear circuits that generate high direct current leakages or high-frequency components. This includes single-phase or poly-phase rectifiers, rectifiers with active power factor correction, continuous voltage generators without AC network separation, and variable frequency inverters.
  • Compact Design : Available as two-pole devices in a compact form factor, minimizing space requirements and facilitating installation in constrained industrial environments.
  • Reliability : Provides a high level of immunity against undesired tripping, ensuring reliable operation even in challenging industrial conditions.
  • Certified Quality : Complies with worldwide product standards such as IEC/EN 61008 and IEC/EN 62423, guaranteeing certified quality and reliability.

Specifications :

  • Rated Current : Available from 16 A to 125 A
  • Sensitivities : Available in 30 mA, 300 mA, and 500 mA options
  • Pollution Degree : Suitable for Pollution Degree 3 (for 16–63 A devices, 30–300 mA)
  • Terminal Types : Equipped with 35 mm² and 50 mm² System pro M Compact terminals, suitable for demanding industrial applications

Installation : Suitable for installation in single-phase networks or three-phase networks with or without neutral
