DIN Rails (Mounting Rails) by Trinity Touch
DIN Rails, also known as Mounting Rails, are essential metal rails widely used for installing circuit breakers, and industrial control equipment within equipment racks. Trinity Touch’s DIN Rails comply with the European standard EN 60715.
Key Features :
- Material and Finish: Trinity Touch DIN Rails (Channels) are zinc-plated and chromate passivated, ensuring durability and corrosion resistance.
- Variety of Types:
- MCB Channels: Available in perforated and unperforated options.
- Terminal Channel (DIN G Rail): Offered in slotted and unslotted versions.
- Versatile Profiles: Profile cutters are used for cutting various standard DIN Rails, G Rails like 32/15, 35/7.5, 35/15, 15/5.5, as well as neutral bus bars NLS-CU 3/10.
- Mounting Solutions: Trinity Touch Timers and Interface Modules are designed for easy mounting on DIN Rails (Channels), suitable for panel boards and other equipment.
- Custom Lengths: All Trinity Touch DIN Rail series, including TBLS, TDR2, and TDR3, can be supplied cut to length, ensuring precise fit for specific applications.
Applications :
- Electrical distribution panels
- Control cabinets
- Automation systems
TDR3 (Third Generation Passivation) :
- Passivation: Third-generation with Cr+ iridescent color.
- Film Thickness: Higher thickness film of 300~400 nm..
- Application: Designed for industrial applications conforming to European standards EN 60715.
TDR2 (Second Generation Passivation) :
- Passivation: Second-generation with Cr, silver chromated.
- Film Thickness: Higher thickness film of 200~400 nm..
- Application: Suitable for various industrial uses, likely confirming to relevant standards.

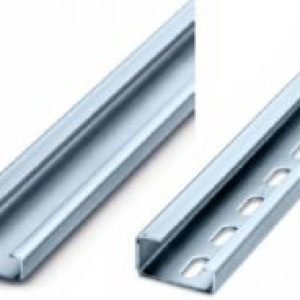

DIN 'G' Rail 32/15

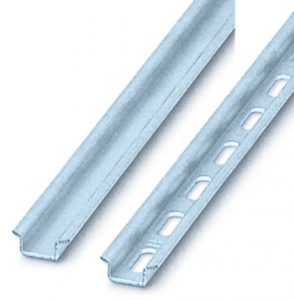

DIN Rail 15/5.5

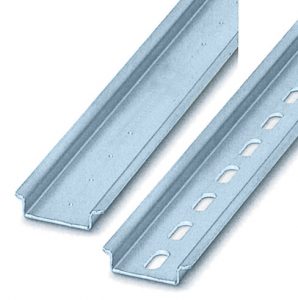

DIN Rail 35/7.5

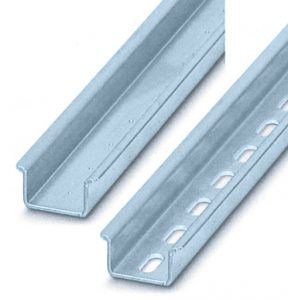

DIN 'G' Rail 35/15
Trinity Touch DIN Rail & Accessories — FAQs
What standard do Trinity Touch DIN Rails comply with?
Trinity Touch DIN Rails (Mounting Rails) comply with the European standard EN 60715, and are used for installing circuit breakers and industrial control equipment within equipment racks.
What finish do Trinity Touch DIN Rails have?
Trinity Touch DIN Rails are zinc-plated and chromate passivated, ensuring durability and corrosion resistance in panel and cabinet environments.
What is the difference between TDR2 and TDR3 passivation?
TDR2 is second-generation passivation (Cr, silver chromated, 200–400nm film), while TDR3 is third-generation with a Cr+ iridescent color and a higher 300–400nm film thickness, offering improved corrosion protection for industrial applications.
What DIN Rail profile sizes does Trinity Touch offer?
Trinity Touch supplies standard profiles including 32/15, 35/7.5, 35/15 and 15/5.5 DIN/G Rails, as well as neutral bus bars (NLS-CU 3/10), and can cut rails to custom lengths.
Can Trinity Touch DIN rails be supplied cut to custom length?
Yes, all Trinity Touch DIN Rail series — including TBLS, TDR2 and TDR3 — can be supplied cut to length for a precise fit in specific panel applications.
Where are Trinity Touch DIN rails typically used?
They are used in electrical distribution panels, control cabinets and automation systems, and also support mounting of Trinity Touch timers and interface modules.
