ABOUT POLYCAB

Polycab is one of India’s leading manufacturers of cables and wires and allied products such as uPVC conduits and lugs and glands. We have a range of cables and wires for practically every application. More recently Polycab has also launched a wide range of consumer electrical products like Fans, Switches, Switchgear, LED lights and Luminaries, Solar Inverters and Pumps. Our products are widely available throughout the country and enjoy a reputation for great quality and superior durability.

About our association with Polycab

Polycab is one of India’s leading manufacturers of cables and wires and allied products such as uPVC conduits and lugs and glands. We have a range of cables and wires for practically every application. More recently Polycab has also launched a wide range of consumer electrical products like Fans, Switches, Switchgear, LED lights and Luminaries, Solar Inverters and Pumps. Our products are widely available throughout the country and enjoy a reputation for great quality and superior durability.

DOWNLOAD POLYCAB WIRES & CABLES PRICELIST

WIRES

PVC INSULATED INDUSTRIAL CABLES 1100 VOLTS

ENERGY EFFICIENT WIRES RANGE 0.75 SQ.MM TO 16 SQ.MM WITH DIFFERENT INSULATION PROPERTIES

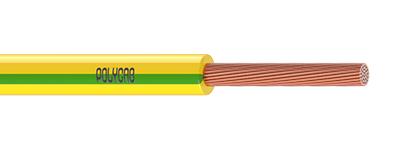

FR – Flame Retardant Wires

Our FR Flame Retardant wires are single-core, multi-stranded copper conductors with FR PVC insulation. These wires provide excellent flame retardant properties, ensuring safety and reliability in various applications.

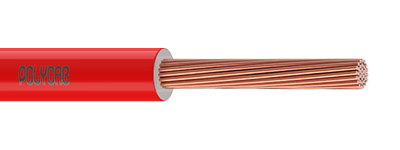

FRLS – Flame Retardant Low Smoke Low Halogen

The FRLS Flame Retardant Low Smoke Low Halogen wires from Polycab are single-core, multi-stranded copper conductors with FRLS PVC insulation. These wires offer excellent flame retardant properties, low smoke emission, and low halogen content, making them ideal for environments where fire safety is critical.

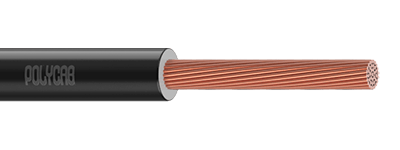

FRZH – Flame Retardant Zero Halogen

Polycab’s FRZH Flame Retardant Zero Halogen wires are single-core, multi-stranded copper conductors with FRZH insulation. These wires provide superior flame retardant properties, low smoke emission, and zero halogen content, meeting RoHS compliance standards for safety and environmental protection.

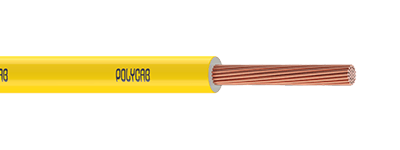

FRLF – Flame Retardant Lead Free

Our FRLF Flame Retardant Lead Free wires are single-core, multi-stranded copper conductors with FRLF PVC insulation. These wires offer excellent flame retardant properties and are RoHS compliant, supporting a green revolution with lead-free materials.

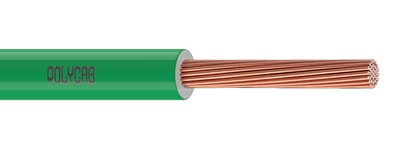

HR FR-LSH – Heat Resistant Flame Retardant Low Smoke Lead Free

The HR FR-LSH Heat Resistant Flame Retardant Low Smoke Lead Free wires from Polycab are single-core, heat-resistant, flame-retardant, low-smoke, PVC insulated industrial cables. With a voltage grade of 1100V and flexible conductors, these wires ensure superior performance and safety in demanding industrial environments.

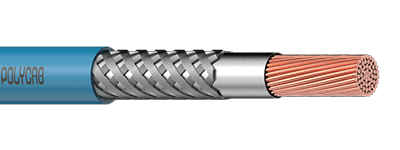

FRFS – Flame Retardant Fire Survival

Our FRFS Flame Retardant Fire Survival wires are single-core, multi-stranded copper conductors with mica tape insulation and a special compound. These wires provide excellent flame retardance and maintain continuous circuit integrity for up to 3 hours at 950°C in case of fire, ensuring the highest level of safety.

Power and Control Cables

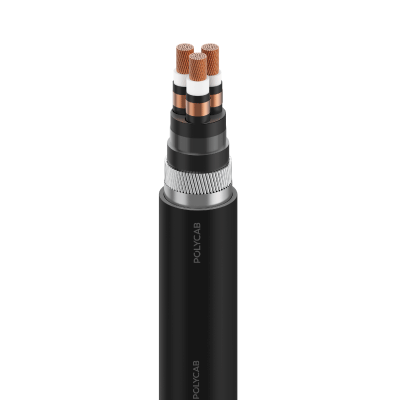

MV Power Cables (3.3kV to 33kV Grade)

  • Testing and Certification : BASEC, KEMA, CPRI, ERDA tested
  • Conductor : Three-core copper or aluminum
  • Screening : Extruded semi-conducting compound, XLPE insulated, insulation screened with semiconducting compound in combination with copper tape (0.3 KA for one second)
  • Sheathing : PVC ST2, FR, FRLSH, LSZH inner sheathed, armored/GI steel (aluminum for single-core) flat/round armored, and overall PVC ST2, FR, FRLSH, LSZH sheathed
  • Standards : IS:7098/II/85, IEC 60502-2, BS 7835

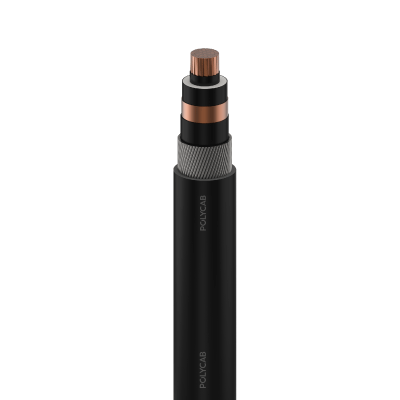

MV Single Core Power Cables (3.3kV to 33kV Grade)

  • Testing and Certification : BASEC, KEMA, CPRI, ERDA tested
  • Conductor : Single-core copper or aluminum
  • Screening : Extruded semi-conducting compound (11kV and above), XLPE insulated, insulation screened with semiconducting compound (11kV and above) in combination with copper tape
  • Armouring : Unarmoured, aluminum flat strip/round wire armored
  • Sheathing : Overall PVC ST2, FR, FRLSH, LSZH sheathed
  • Standards : IS:7098/II/85, IEC 60502-2, BS 7835

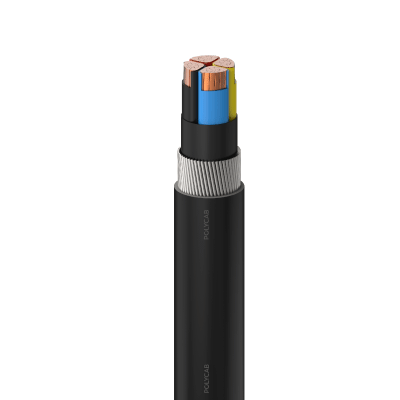

LV POWER CABLES

  • Conductor : Copper or aluminum solid/stranded
  • Insulation : XLPE insulated, cores laid up
  • Sheathing : PVC inner sheathed, unarmoured/armored, extruded PVC/PE/LSZH sheathed
  • Voltage Rating : 0.6/1.0 kV
  • Sizes : 1.5 mm² to 1000 mm² in 1/2/3/3.5/4 cores

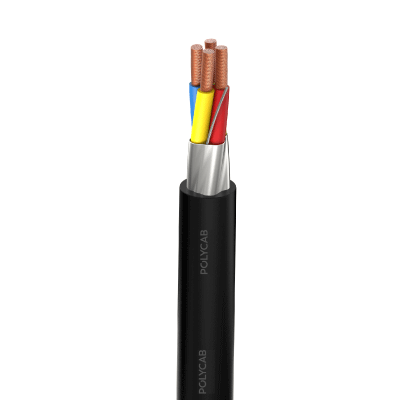

LV Control Cables (1100 Volts Grade)

  • Testing and Certification: BASEC, KEMA, CPRI, ERDA tested
  • Conductor: Control copper cables, solid/stranded
  • Insulation: PVC, XLPE, HR PVC insulated, cores laid up
  • Sheathing: PVC, HR PVC, FR, FRLSH, LSZH taped/extruded inner sheathed, unarmoured, GI steel (round wire/flat strip) armored, extruded PVC, HR PVC, FR, FRLSH, LSZH outer sheathed
  • Sizes: 2 to 100 cores in 1.5 and 2.5 sq.mm

Speciality Cables

SUBMERSIBLE FLAT AND ROUND CABLES

  • Flat : 3 core x 1.50 sq.mm.
  • Round : 3 core and 4 core x 1.5 sq.mm.
  • Class 5 copper conductors with PVC/XLPE insulation and PVC ST2 sheathing.
MULTI-CORE INDUSTRIAL FLEXIBLE CABLES
  • Range :
    • 2 core to 61 core x 0.50 sq.mm to 4 sq.mm.
    • 2 core to 4 core from 6 sq.mm to 120 sq.mm.
  • Class 5 copper conductors with various insulation and sheathing properties.

Single Core DC Solar Cables

  • Range : 2.5 sq.mm to 300 sq.mm.
  • Type 1 : Class 5 ATC copper conductor, insulated and sheathed with Electron beam XLPO (TUV approved standard EN-50618).
  • Type 3 : Class 5 Base copper conductor, XLPE insulated and PVC UV stabilized sheathed.

CO AXIAL CABLES

  • Range : RG 59 F, RG 6 F & RG 11 F.
  • Copper/CCS conductor, nitrogen gas injected polyethylene foam insulated, bonded aluminum foil laminated, al-alloy braided, water-resistant jelly flooded, weather-resistant PVC sheathed, 75Ω low loss.

TELEPHONE CABLES

  • Range : 1 pair to 100 pairs x 0.40 mm, 0.50 mm, and 0.63 mm.
  • Solid bare conductor with HDPE insulation and flame retardant jacketing.
  • Properties : Low crosstalk and attenuation.

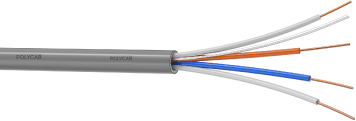

LAN CABLES

  • Range : CAT 5E & CAT 6.
  • Twisted pair, insulated with high-quality polyethylene, unshielded light gray PVC jacket.
  • Properties : Improved fire retardant, low attenuation, cross talk, and low structural return loss.

SPEAKER CABLES

  • Range : Twin parallel 23/36, 23/38, 40/36, and 40/38.
  • High-quality oxygen-free copper conductor.
  • Properties : Ensures excellent sound quality.

OFC CABLE (OPTICAL FIBRE CABLE)

  • State-of-the-art manufacturing unit, skilled and expert team.
  • Supporting Government of India projects like Digital India, Make in India, BharatNet, SmartCities.
