Motor Protection and Control Solutions
ABB offers a wide array of protection devices designed to safeguard equipment and installations against short circuits, overloads, phase loss, and unbalanced currents. Renowned for their sustainable performance and reliability, these devices play a crucial role in everyday operations.
- Cost and Space Savings: Manual motor starters minimize costs and space requirements, ensuring swift motor shutdown in milliseconds during short circuit scenarios, even in hazardous areas.
- Efficient Transformer Protection: Circuit breakers for transformer protection provide essential overcurrent protection on the primary side, eliminating the need for costly protection measures on the secondary side.
- Robust Protection: Protects against short circuits, overloads, phase loss, and unbalanced currents, ensuring continuous operation reliability.
- Versatile Applications: Suitable for diverse industrial applications, including hazardous environments.

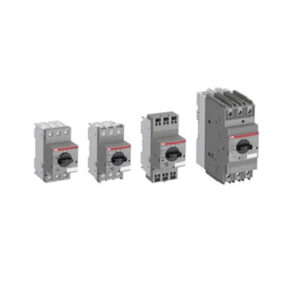

Manual Motor Starters
A Complete Motor Protection Concept
Manual motor starters, also referred to as motor protection circuit breakers (MPCBs) or manual motor protectors (MMPs), are essential electromechanical devices for main circuit protection. They allow manual ON/OFF switching of motors and provide fuseless protection against short circuit, overload, and phase failures. This fuseless protection minimizes costs, saves space, and ensures rapid response during short circuit events by swiftly disconnecting the motor within milliseconds. Starter combinations are configured with contactors and are available with screw or Push In Spring terminals.
- Harmonized Accessory Range: Simplifies planning and logistics across the MS1xx and MO1xx families.
- Reliable Motor Protection: Reduces machine downtime and maintenance costs with dependable protection.
- Manual ON/OFF Handle: Enables manual control and provides short circuit current and overload protection.
- Adjustable Current Settings: Large markings for precise current setting adjustments.
- Temperature Compensation: Supports operation up to +60°C.
- Remote Control Options: Includes undervoltage release or shunt trip for remote operation.
- High Short Circuit Breaking Capacity (Ics): Up to 100 kA ensures robust performance under fault conditions.
- Suitable for 1 Phase Applications: Versatile application across single phase systems.

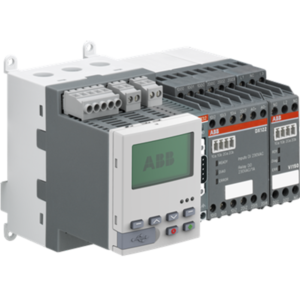

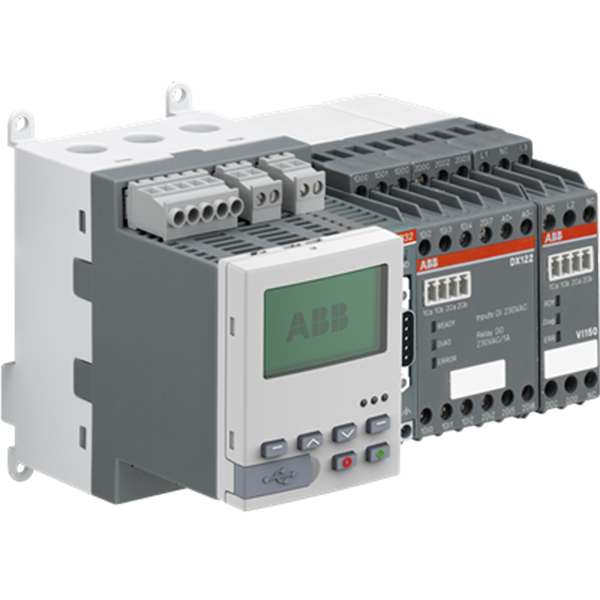

Universal Motor Controllers
Intelligent Motor Management
The Universal Motor Control UMC100.3 from ABB is designed to elevate motor control to the next level. Offering exceptional ease of use, robust communication capabilities, and straightforward configuration, it simplifies operational efficiency like never before.
- Reduced Costs and Space Requirements: Minimizes wiring time, space utilization, and overall costs.
- Versatile Communication Interfaces: Offers a choice of communication interfaces for enhanced connectivity.
- Safe Motor Shutdown: Ensures safety with reliable motor shutdown capabilities.
- High Voltage Compatibility: Supports up to 1000 V AC motor voltage.
- Suitable for Various Motor Types: Designed for both single phase and three phase motors.
- Wide Range of Motor Current Ratings: Rated motor current from 0.24 to 63 A (without accessories).
- Multiple Tripping Classes: Compliance with EN/IEC 60947-4-1 standards with tripping classes 5, 10, 20, 30, 40.
ABB Motor Protection & Control Solutions — FAQs
What is a Manual Motor Starter (MPCB) and what does it protect against?
ABB Manual Motor Starters, also called Motor Protection Circuit Breakers (MPCBs) or Manual Motor Protectors (MMPs), provide fuseless protection against short circuit, overload and phase failure, and can shut a motor down within milliseconds during a short circuit — even in hazardous areas.
What is the short circuit breaking capacity of ABB manual motor starters?
ABB manual motor starters offer a high short circuit breaking capacity (Ics) of up to 100 kA, ensuring robust performance under fault conditions.
What is the ABB UMC100.3 Universal Motor Controller used for?
The UMC100.3 is ABB's intelligent motor management system, offering advanced motor control with robust communication interfaces, ease of use and safe motor shutdown, reducing wiring, space and overall cost.
Can ABB motor starters operate at high ambient temperatures?
Yes, ABB manual motor starters support temperature compensation for operation up to +60°C, along with remote control options such as undervoltage release or shunt trip.
Do ABB motor protection devices work for single-phase applications?
Yes, ABB manual motor starters are suitable for 1-phase applications as well as standard 3-phase industrial motor circuits.
Why use circuit breakers for transformer protection instead of secondary-side protection?
ABB circuit breakers for transformer protection provide overcurrent protection on the primary side, eliminating the need for costly protection measures on the secondary side while still ensuring reliable, cost-effective protection.
