Residual Current Operated Circuit Breaker (RCBO)

Residual Current Circuit Breakers with Overcurrent Protection (RCBOs)

RCBOs integrate dual protection functions into a single device, combining the capabilities of Residual Current Circuit Breakers (RCCBs) and Miniature Circuit Breakers (MCBs). They provide comprehensive protection against both leakage currents to ground and overcurrents such as overload and short circuit conditions.

Dual Protection: Offers leakage current protection typical of RCCBs, preventing electric shocks from ground faults, and overcurrent protection typical of MCBs, safeguarding against overloads and short circuits.
Application Versatility: Ideal for protecting both individuals and connected equipment in residential, commercial, and industrial environments.
Enhanced Safety: Ensures safety by disconnecting the circuit in the event of leakage or overcurrent, protecting against electrical hazards and equipment damage.
Compliance: Meets international standards for electrical safety and performance, ensuring reliability and peace of mind.

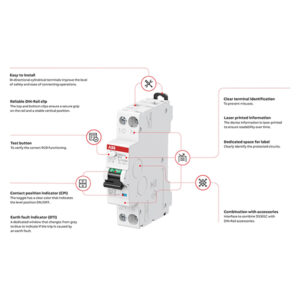

DS301C Range

a single-module-width device designed to meet the increasing global demand for compact electrical protection solutions. This new range not only protects circuits but also provides flexibility for integrating future devices like home automation systems.

Versatile Protection : Combines MCB Unibis and ABB RCCB technologies to offer comprehensive protection against overloads, faults for human safety, and ensures continuity of service for other circuits.
Market Compatibility : Suitable for residential, commercial, and building applications with a rated current range from 6 to 20 A.
Reliable Protection : Ensures individual circuit protection against overload and faults, enhancing safety and minimizing downtime.

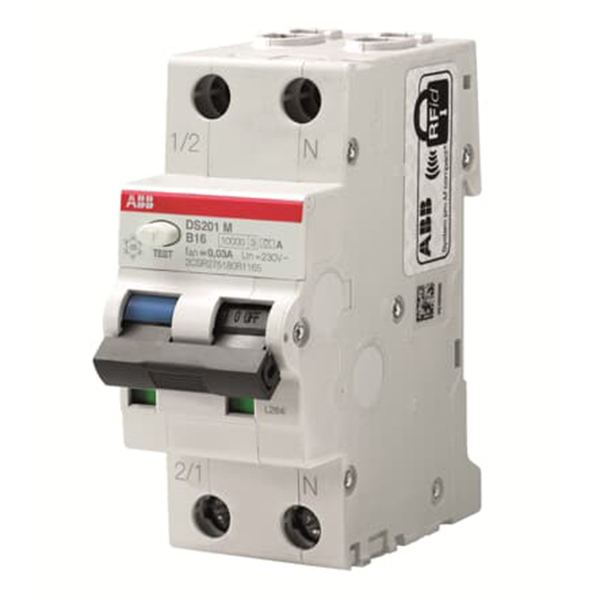

DS201 RCBO

ABB’s DS201 RCBO provides comprehensive protection for single-phase circuits, ensuring safety against overload, short-circuit currents, and various earth fault conditions. It combines robust protection capabilities with user-friendly features for ease of installation and maintenance.

Types Available : AC, A, G, AP-R, F, catering to different application requirements.
Configuration : 1P+N configuration for single-phase circuits.
Breaking Capacity : Supports 4.5, 6, and 10 kA breaking capacities, ensuring robust performance under fault conditions.
Sensitivity : Adjustable sensitivity ranges from 10 to 300 mA, accommodating various protection needs.
Tripping Characteristics : Includes B, C, D, and K tripping characteristics for tailored circuit protection.
Diagnostic Features : Test pushbutton for verifying device functionality and a contact position indicator (CPI) window for clear status indication (red for closed, green for open).

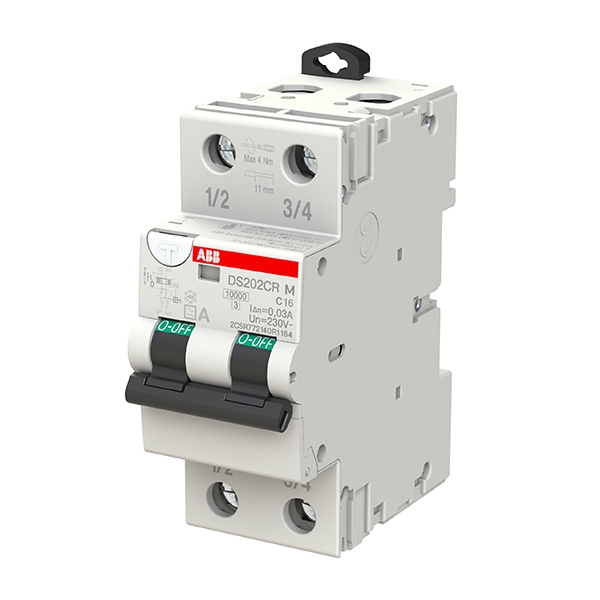

DS202CR RCBO

ABB’s DS202CR RCBO offers robust protection for two-phase circuits, ensuring safety against overload, short-circuit currents, and various earth fault conditions. Designed for efficiency and reliability, it combines compact dimensions with advanced features for ease of installation and maintenance.

Types Available : AC, A, AP-R types suitable for different applications.
Configuration : Protects two-phase circuits.
Breaking Capacity : Supports 4.5, 6, and 10 kA breaking capacities, ensuring reliable performance during fault conditions.
Sensitivity : Adjustable sensitivity from 10 to 300 mA, accommodating varying protection needs.
Tripping Characteristics : Offers B and C tripping characteristics for tailored circuit protection.
Diagnostic Features : Includes a test pushbutton for verifying device functionality and a contact position indicator (CPI) on the toggle for clear status indication (red for closed, green for open).

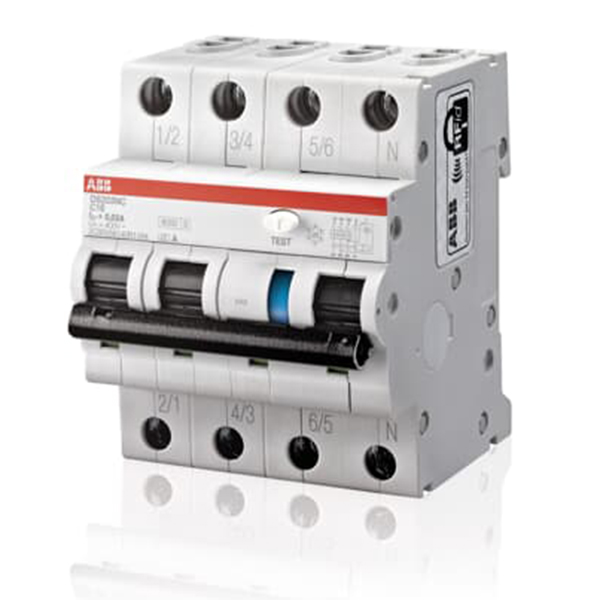

DS203NC 3P+N RCBO

ABB’s DS203NC range of 3P+N residual current circuit breakers with overcurrent protection offers robust protection for modern three-phase systems, combining compact design with advanced safety features.

Types Available : AC, A, AP-R, S types cater to diverse application needs.
Configuration : Protects 3 phases + neutral circuits.
Breaking Capacity : Offers 4.5 and 6 kA breaking capacities depending on the model, ensuring reliable performance under fault conditions.
Sensitivity : Adjustable sensitivity options of 30, 100, and 300 mA, providing flexibility for various protection requirements.
Tripping Characteristics : Supports B, C, and K tripping characteristics, tailored to specific circuit protection needs.
Diagnostic Features : Includes a test pushbutton for verifying device functionality.

Frequently Asked Questions

What ABB RCBO models does eNarayan Elex supply?

eNarayan Elex supplies the ABB DS301C single-module RCBO, DS201 single-phase RCBO, DS202CR RCBO and DS203NC 3P+N RCBO ranges, all combining earth leakage and overcurrent protection.

What breaking capacities and sensitivities do these ABB RCBOs offer?

The ABB DS series RCBOs (DS301C, DS201, DS202CR, DS203NC) supplied by eNarayan Elex are available across a range of breaking capacities and residual-current sensitivities to suit different circuit protection requirements — contact our team for the exact ratings per model.

What is the difference between the ABB DS301C and DS203NC RCBOs?

The DS301C is a compact single-module RCBO, while the DS203NC is a 3P+N (three-phase plus neutral) RCBO for three-phase circuit protection — the model chosen depends on whether the circuit being protected is single-phase or three-phase.

What does an RCBO protect against?

An RCBO (Residual Current Operated Circuit Breaker with Overcurrent Protection) combines earth-leakage protection with overload and short-circuit protection in a single DIN-rail device, guarding against both electric shock and overcurrent faults.

Where can I buy genuine ABB RCBOs in Hyderabad?

eNarayan Elex is an authorised ABB distributor in Hyderabad, supplying the DS301C, DS201, DS202CR and DS203NC RCBO range across Telangana and Andhra Pradesh.

Does eNarayan Elex supply ABB RCBOs for bulk/project orders?

Yes, eNarayan Elex supplies the ABB RCBO range at project quantities; contact our Hyderabad office for current stock, specifications and pricing.
