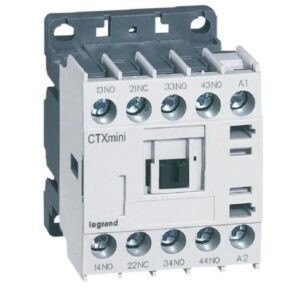

CTX³ Control Relay

Legrand Ctx³ Control Relay - Switchgear
  • Precise Control and Monitoring: Designed for accurate control and monitoring of electrical circuits.
  • Reliable Performance: Ensures consistent performance in managing switching operations.
  • Enhanced Automation: Boosts efficiency in industrial and commercial settings.
  • Accurate Control: Ensures precise and responsive control of electrical loads.
  • Standard Protocol Compatibility: Compatible with standard control protocols for easy integration.

Safety and Compliance

  • Industry Standards: Meets industry standards for electrical safety and reliability.
  • Protective Features: Includes built-in protective features for secure operation.
  • Regulatory Compliance: Ensures adherence to regulatory requirements for peace of mind.

Functionality and Versatility

  • Wide Range of Applications: Suitable for motor control, lighting control, HVAC systems, and more.
  • Remote Operation: Supports remote operation and monitoring for added convenience.

A control relay’s job is simple to describe and easy to underestimate: it takes a small, low-power signal from a control device and uses it to safely switch a larger electrical load. The Legrand CTX3, which eNarayan Elex supplies, is built specifically for that handoff point in industrial and commercial control panels.

Where it fits in a system: a PLC (programmable logic controller), a timer, or a sensor typically outputs a weak signal — not enough current to directly drive a motor, a lighting contactor, or an HVAC component. The CTX3 sits between that control signal and the load, switching the load on and off in response to the signal without the low-power control circuit ever touching the higher current directly. This is standard practice in industrial and commercial installations precisely because it protects the sensitive control electronics from the load side.

Configuration options: Legrand’s CTX3 range is available with multiple coil voltages (24V, 110V, 230V and 415V, in both AC and DC for several of these) and multiple contact configurations — including 2NO+2NC (two normally-open, two normally-closed contacts) and 4NO (four normally-open contacts) — so the specific relay ordered needs to match both the voltage of the control signal driving it and the number/type of circuits it needs to switch.

Build and connection: the relay mounts on a standard DIN rail, which is the mounting format used across most control panel components, so it fits alongside other panel devices without special brackets. Auxiliary circuit connections use screw terminals, and Legrand’s documentation notes the contact configuration can be extended with add-on auxiliary contact blocks where a panel design needs more switching points than the base relay provides. Legrand rates the CTX3 for high mechanical and electrical operation counts, which is the relevant durability measure for a component that may switch thousands of times over its working life in an automated system.

Typical applications: motor control circuits, lighting control panels, HVAC control systems, and any control-panel design needing remote or automated switching driven by a PLC or timer.

Why this isn’t the same as a contactor: a contactor is built for switching heavier motor and power loads directly; a control relay like the CTX3 sits a step earlier in the chain, switching lighter control-circuit loads and signals. Panel builders typically spec both in the same panel — the relay handling the logic-level switching, the contactor handling the actual motor or heavy-load current — rather than using one in place of the other.

eNarayan Elex supplies the Legrand CTX3 range from its Hyderabad warehouse for panel builders and industrial buyers. For the distribution boards these control circuits often sit alongside, see Legrand Distribution Boards; browse the wider Switchgear category for more. Contact eNarayan Elex for genuine Legrand pricing.

Frequently Asked Questions

What is the Legrand CTX³ Control Relay used for?

The CTX³ Control Relay provides precise control and monitoring of electrical circuits, supporting accurate and responsive switching for motor control, lighting control and HVAC systems.

Is the Legrand CTX³ Control Relay compatible with standard control protocols?

Yes — it is designed for compatibility with standard control protocols, supporting easy integration into existing control systems.

Does the CTX³ Control Relay meet electrical safety standards?

Yes — it meets industry standards for electrical safety and reliability and includes built-in protective features for secure operation and regulatory compliance.

Can the CTX³ Control Relay be operated remotely?

Yes, it supports remote operation and monitoring for added convenience in automated or centrally-managed installations.

What applications is the Legrand CTX³ Control Relay suited for?

It suits a wide range of applications including motor control, lighting control and HVAC systems in industrial and commercial settings.
