Distribution Boards
Explore the Versatile Ekinox3 DB Offerings :
Configurations for SPN and ETPN DBs:
Dimensions suitable for IP30 and IP43/54 applications.
Innovative DX3 Products:
Ensures safe and easy connections.
Features rising clamp terminals.
Includes retractable insulating shields.
Range of VTPN MCB and MCCB Options:
Available in different sizes for IP30 and IP43/54.
Provides reliable solutions for various electrical applications.
Specialized Metra Plug and Socket DBs:
Designed for DX3 MCBs, RCCBs, and RCBOs.
Detailed mounting hole specifications for easy installation.
Detailed Dimensions for Cable End and Metering Boxes:
Available in SPN, ETPN, and VTPN configurations.
Caters to IP30 and IP43 requirements.

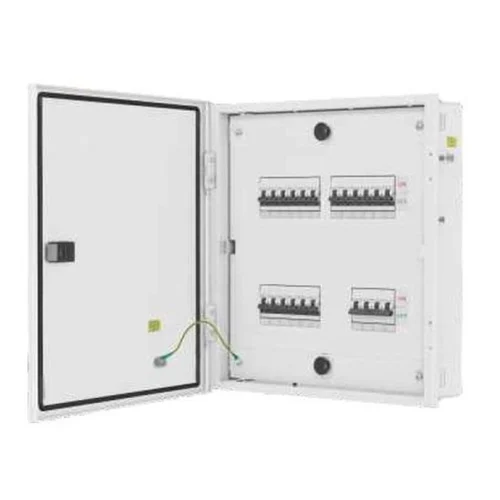

A distribution board is only as good as how safely and simply it can be wired, inspected and expanded later — which is the problem Legrand’s Ekinox3 range was specifically built around, and why eNarayan Elex stocks it as its primary distribution board line.
Configuration types: the range covers SPN (single pole and neutral), ETPN (four-pole, for three-phase-plus-neutral circuits) and VTPN (also four-pole, in a different enclosure format) boards, so the right configuration depends on whether the circuit it’s feeding is single-phase or three-phase.
Enclosure protection — IP30 vs IP43/54: this is the single most important spec to get right before ordering. IP30 boards are built for installation inside a panel room or enclosed electrical area, where dust and moisture ingress is already controlled by the room itself. IP43/54 boards add a higher level of dust and splash protection built into the board enclosure — the right choice for less-controlled environments: open shop floors, semi-outdoor locations, utility areas where the board itself needs to handle some exposure that a panel room would otherwise prevent.
What’s inside the Ekinox3 range: the boards are built for Legrand’s DX3 MCBs (miniature circuit breakers), RCCBs (residual current circuit breakers, for earth-leakage protection) and RCBOs (which combine overload and earth-leakage protection in one device) as the incomer and outgoing protection devices. Legrand’s own technical documentation for this range lists a fully insulated copper busbar system with a shrouded neutral bar (reducing the risk of accidental contact with live parts during maintenance), rising-clamp terminals for secure, easy cable connections, and a reversible door — meaning the same board can be configured to open from either side depending on how it’s mounted, which matters more than it sounds like once a board is actually installed on a wall.
Metra plug-and-socket DBs are a specialised version of the same family, built around DX3 MCB/RCCB/RCBO protection in a plug-and-socket format rather than a fixed terminal layout — useful where distribution boards need to be swapped or reconfigured without rewiring the whole circuit.
Choosing fast: panel room or enclosed area → IP30. Open floor, utility area, semi-outdoor → IP43/54. Single-phase circuit → SPN. Three-phase circuit → ETPN or VTPN depending on enclosure preference.
eNarayan Elex supplies the full Ekinox3 range from its Hyderabad warehouse for both single-site and bulk commercial orders. For the matching protection devices themselves, see the wider Switchgear category, and for Legrand’s Control Relay line used alongside DBs in control panels. Contact eNarayan Elex for genuine Legrand pricing in Hyderabad.
Frequently Asked Questions
What distribution board range does eNarayan Elex supply from Legrand?
eNarayan Elex supplies the Legrand Ekinox3 distribution board (DB) range, including Ekinox3 SPN and ETPN configurations in IP30 and IP43/54 enclosure ratings for homes and commercial premises.
What is included in the Ekinox3 DX3 product line?
The Ekinox3 DX3 line covers Legrand’s DX3 range of MCBs, RCCBs and RCBOs designed to fit inside Ekinox3 distribution boards, giving a complete matched DB-plus-protection-device solution.
Does the range include plug-and-socket distribution boards?
Yes, the Legrand distribution board range supplied by eNarayan Elex includes plug-and-socket type distribution boards alongside the standard Ekinox3 SPN/ETPN enclosures.
What is the difference between IP30 and IP43/54 distribution board enclosures?
IP30 boards are for protected indoor locations, while IP43/54 rated Ekinox3 enclosures give additional protection against dust and water splashes, suiting semi-outdoor or harsher indoor environments.
Are Legrand Ekinox3 distribution boards suitable for commercial premises?
Yes, the Ekinox3 SPN and ETPN range is designed for both homes and commercial premises, with enclosure ratings selected to match the installation environment.
Where can I buy genuine Legrand distribution boards in Hyderabad?
eNarayan Elex is an authorised Legrand distributor in Hyderabad, supplying Ekinox3 distribution boards across Telangana and Andhra Pradesh.
